Description

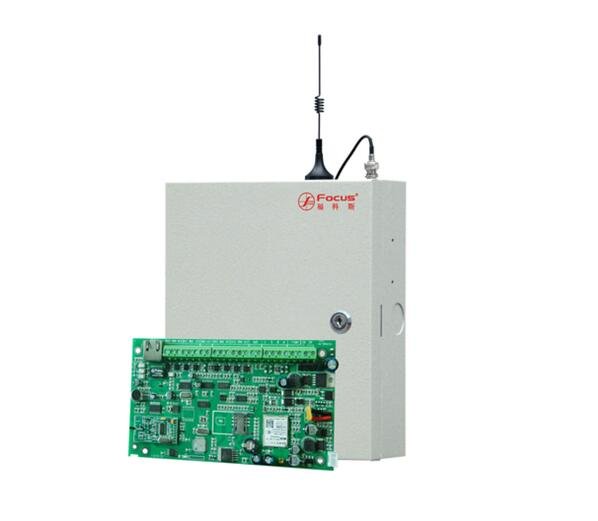

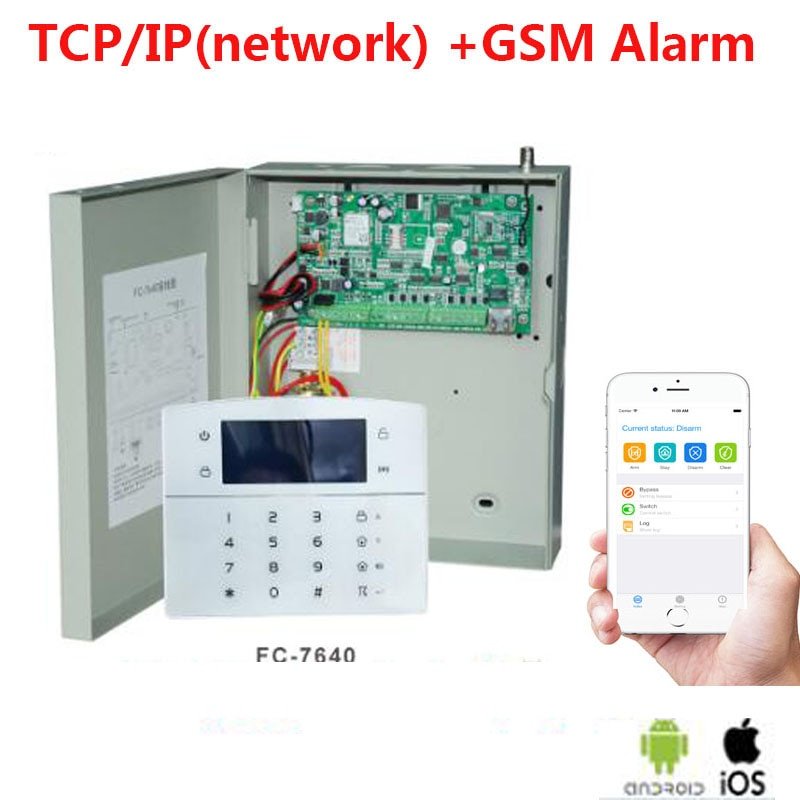

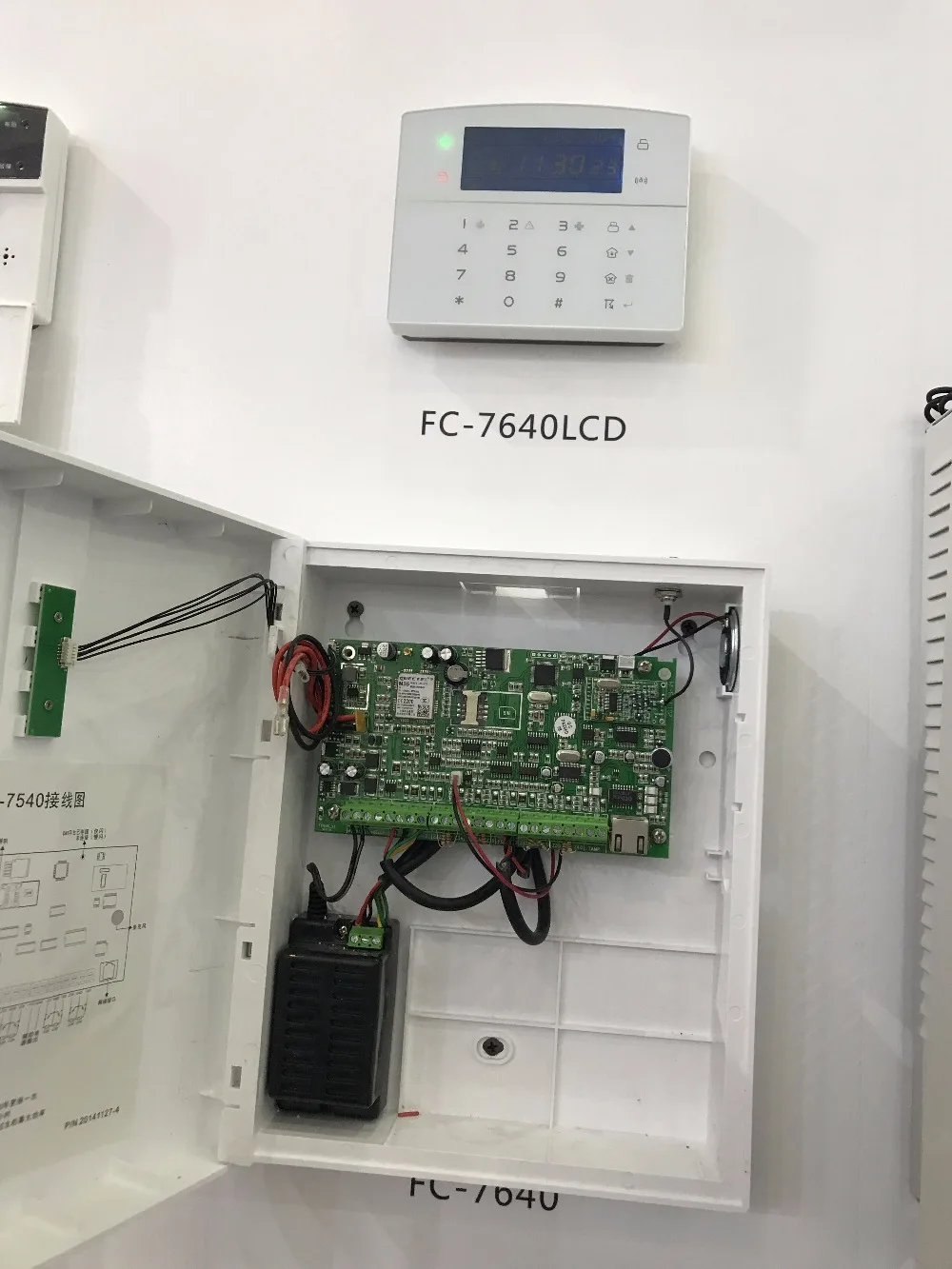

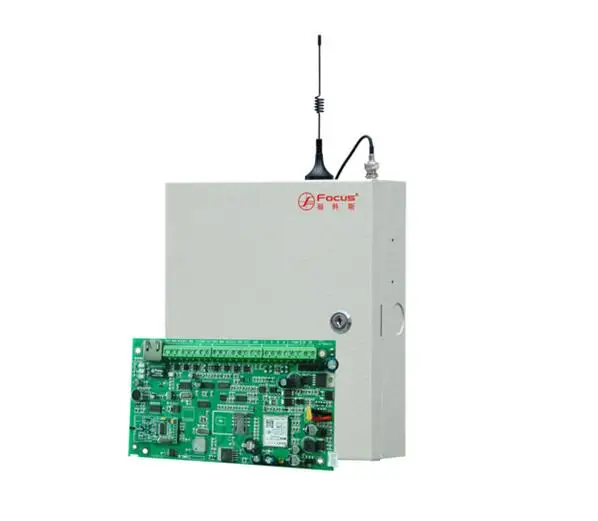

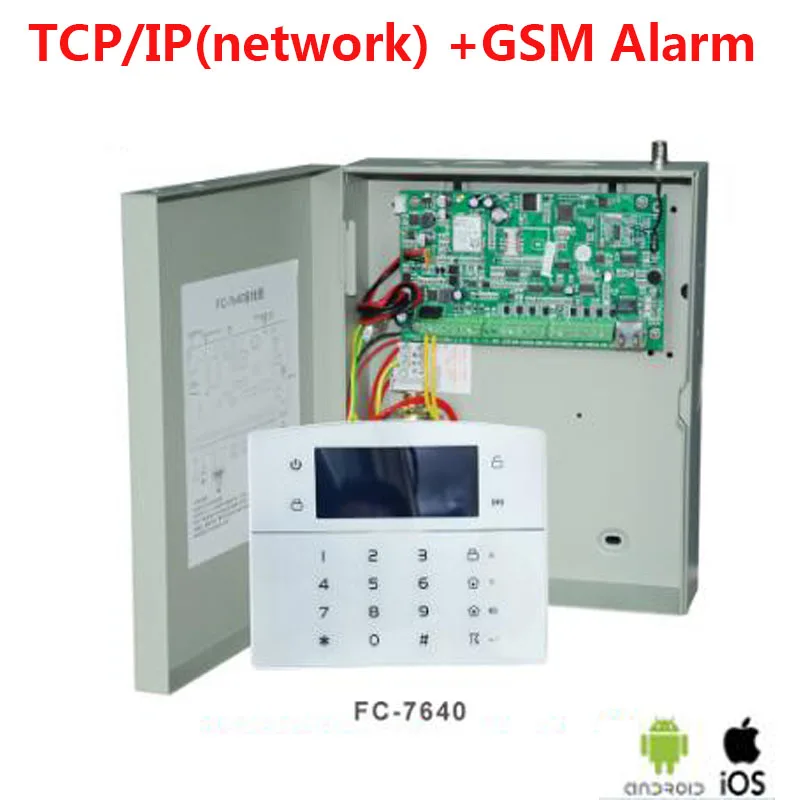

Focus FC-7640 Industrial Network Alarm System 8 Wired Zones 32 Wireless Zones TCP/IP GSM Metal Box Wired Security Alarm Box

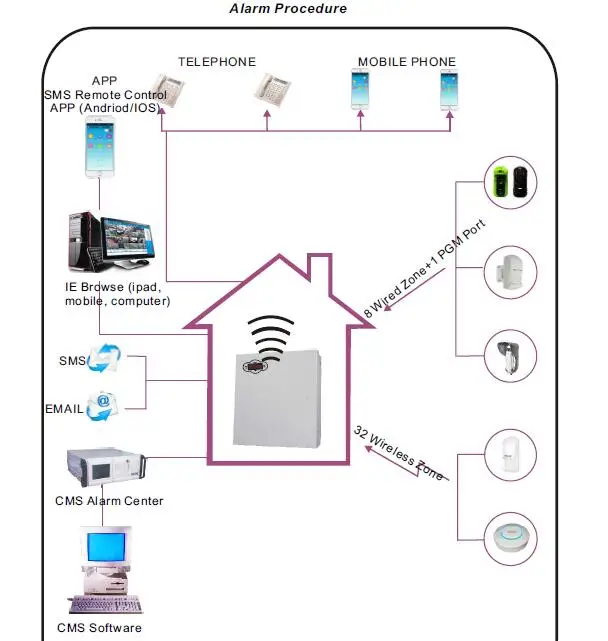

1. 40 zones total: 8 wired zones, 32 wireless zones.

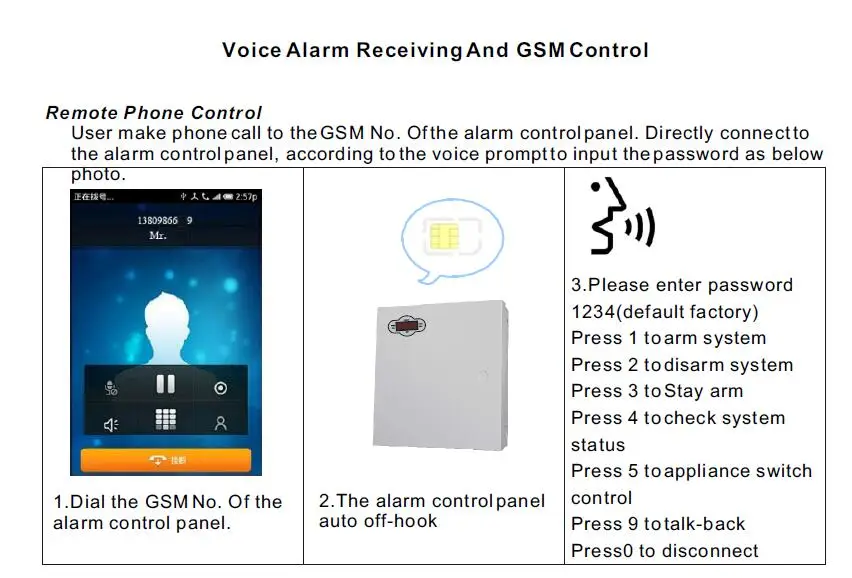

â—Ž support GSM and TCP/IP protocol,network alarm settings.
â—Ž Brand-new 16 bits high speed MCU, with voice prompt operation.
â—Ž Built-in electronic clock supporting 4 groups timing arm/disarm, 2 groups timing alarm clock.
â—Ž 32-channels remote control program.
â—Ž Can connect with alarm linkage output.
â—Ž Subsection record, partition arm , auto listening-in spot.
â—Ž AC fault or wireless/wired detectors trouble reporting function.
â—Ž Can set self-checking time auto reporting control panel.
FC-7640 wired alarm system user manual download link
Video on youtube https://youtu.be/nNFBCLANTMI
English menu wired keypad
|
Art No.: |
FC-7640 |
|
Dimensions |
265*220*80MM |
|
Housing Materials |

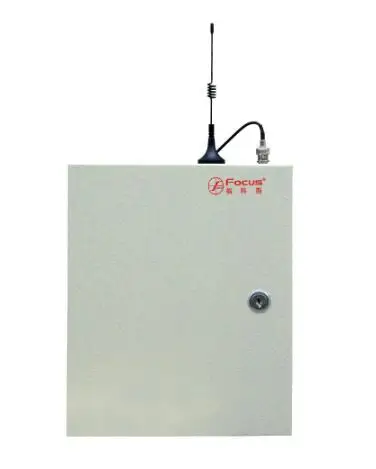

Metal Box |
|
Installation Location |
Indoor Use Wall Mounted |
|
LCD Size |
NO |
|
Menu Voice Guidance |
YES |
|
Kit Weight |
2.14KG(Without Keypad) |
|
Kit Accessories Included |
|
|
|
FC-7640 Panel*1 |
|
|
F-7640 LCD *1 |
|
System Network |
TCP/IP GSM |
|
Number Of Users |
16 |
|
Number Of Wired Zones |
8 |
|
Number Of Bus Zones |
NO |
|
Number Of Wireless Remotes Or Wireless Keypad Controls |
8 |
|
Number Of Wired Keypad |
8 |
|
Number Of Wireless Zones |
32 |
|

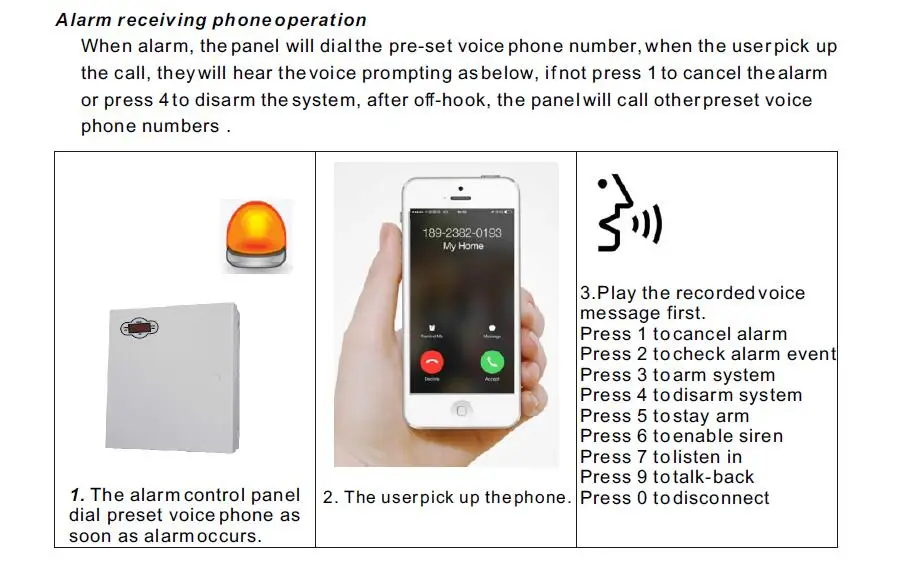

Number Of Voice Phones |
4 |
|
Number Of Wireless Doorbell |
1 |
|
Number Of Wireless Switch |
16CH |
|
Number Of Wireless Siren |
Dual Way Siren *1 One Way Siren No Limited |
|
Outputs |
1 PGM Port |
|
GSM Antenna |
External GSM Antenna |
|
Event Log Inquiry |
512 |
|
Radio Frequency |
433MHz or 868MHz |
|
Intergrated Siren |
YES(85Db@1M) |
|
Backup Battery Type |
12V DC, 7AH Lead Acid Battery |
|
Max Receiving Range |
100M |
|
Max Sending Range |
100M |
|

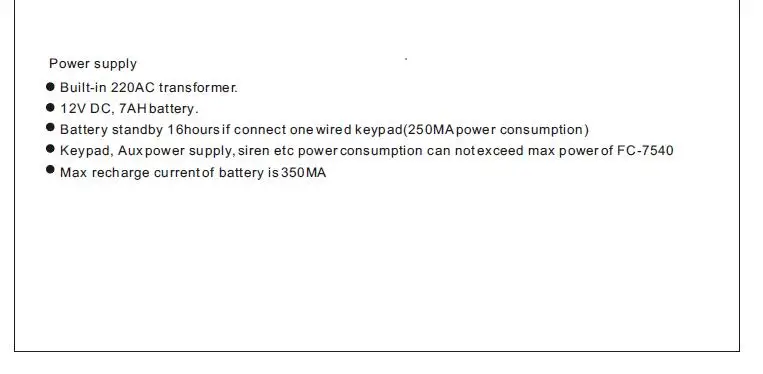

Power Supply Unit |
15V/2A |
|
Protocols |
Ademco Contact ID |
|
Tamper Monitoring |
YES |
|
Mobile Client |
ST-Panel https://www.meiantech.com/en/Support/download/
|
|

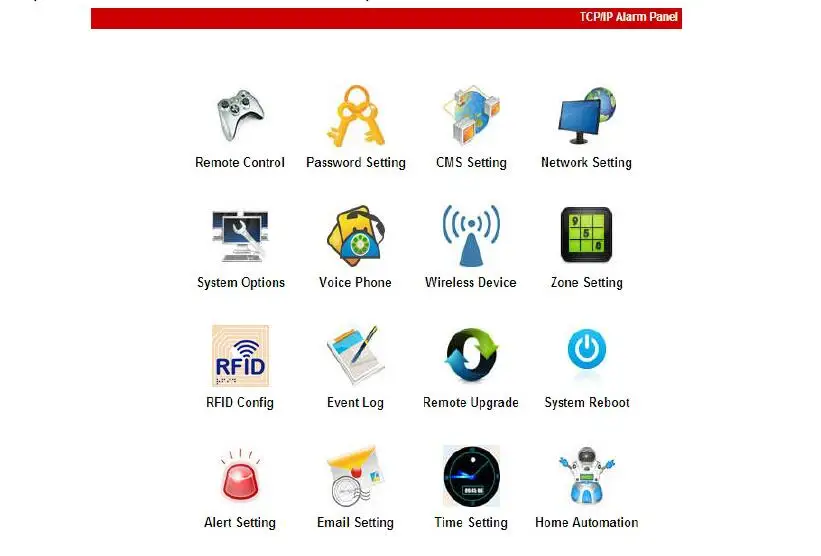

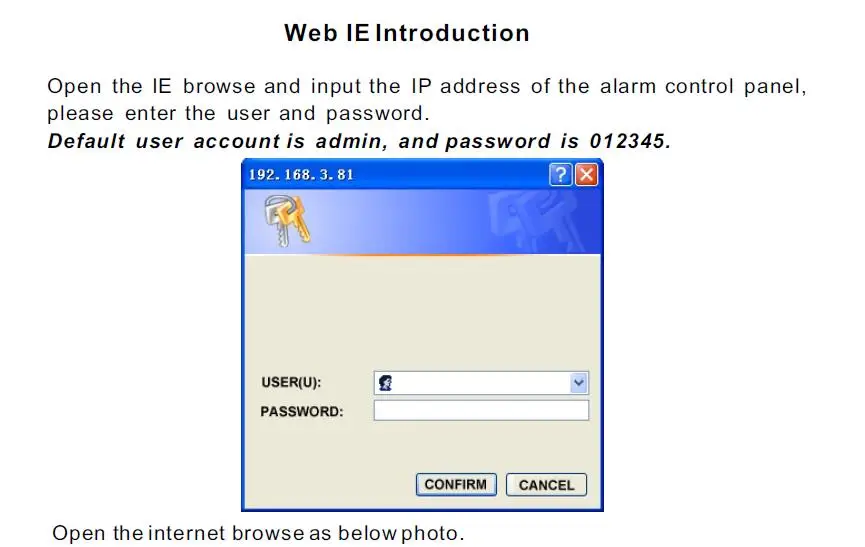

WebIE |
192.168.1.81 (Default Setting) |
|
Meian CMS |
Server: wode110.com |
|
Tel-Line CMS |
2 CMS |
|
Certifications |
CE/FCC/ROHS |
Sorry, Email Function does’ t work so far !!!

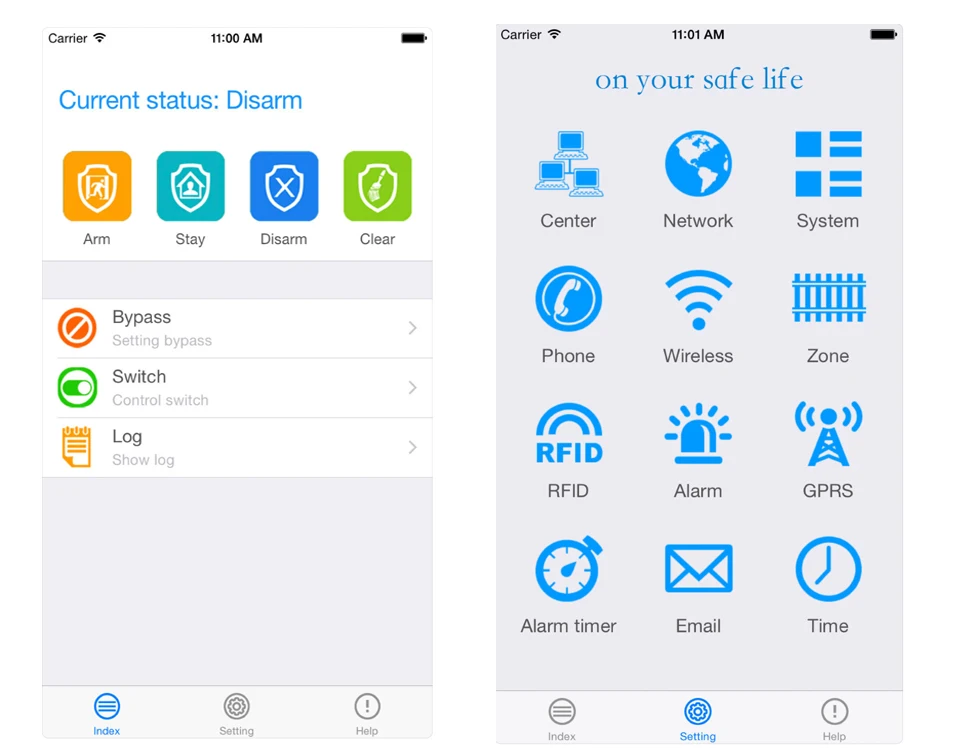

APP interface

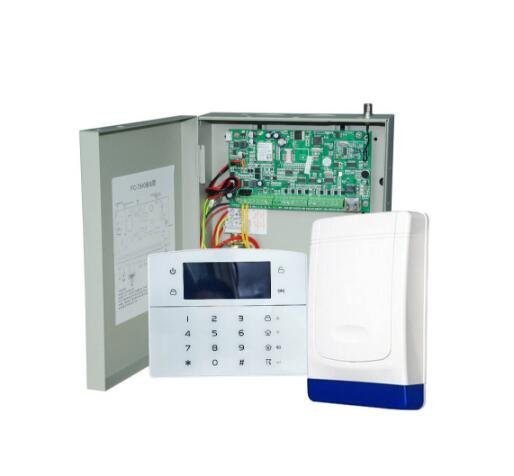

Package include

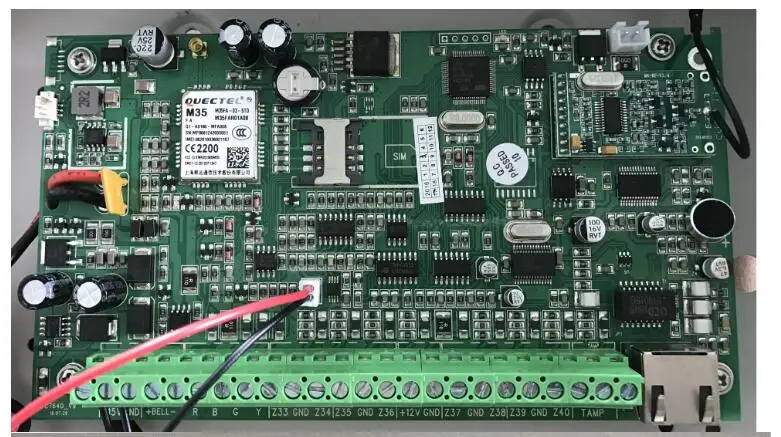

Control Panel main board with Cabinet 1 pc
Wired Touch LCD Control Keypad 1 pc
AC/AC Transformer 1 pc
Power Supply Plug 1pc
Accessories: Antenna 1 pc, EOL Resistors 1 bag.
(please note that backup battery is not included)

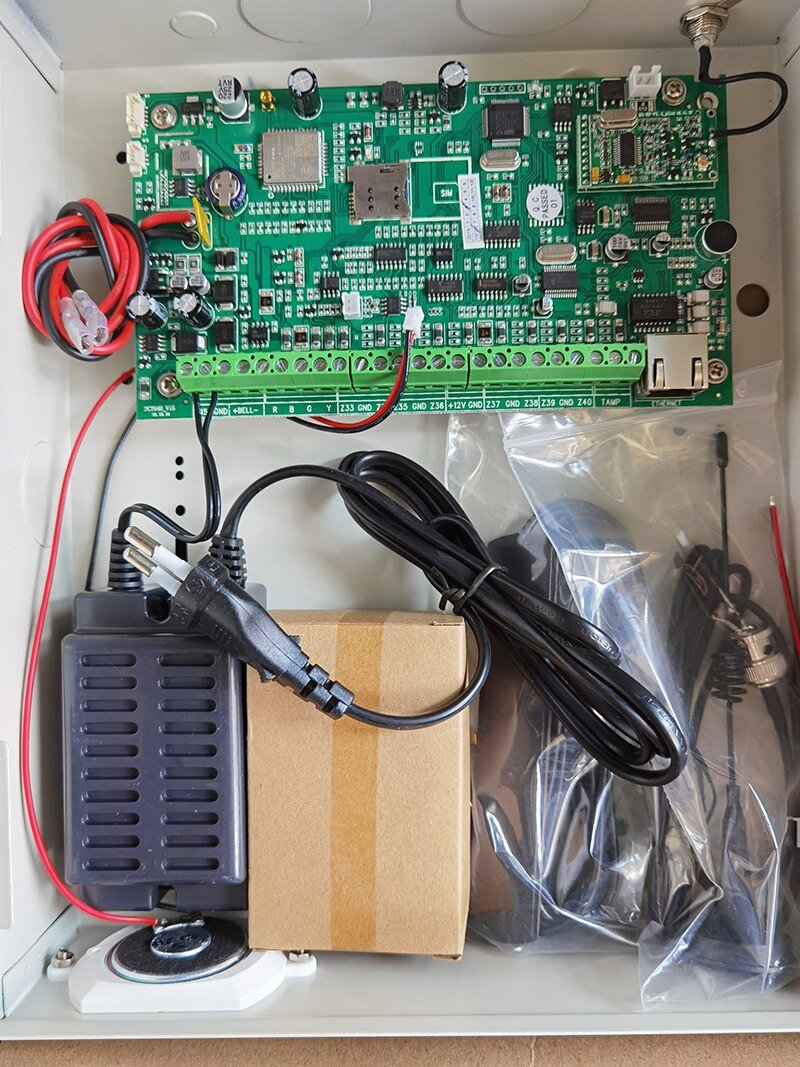

In the box

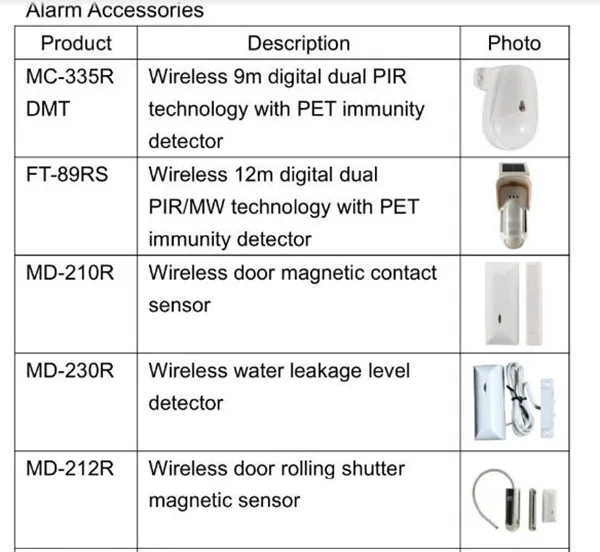

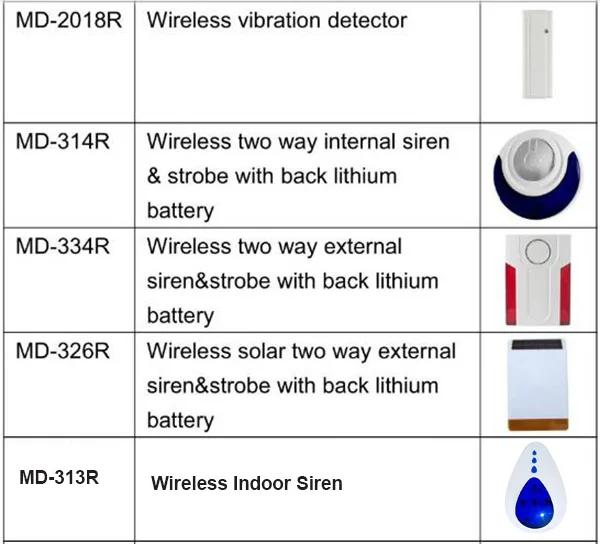

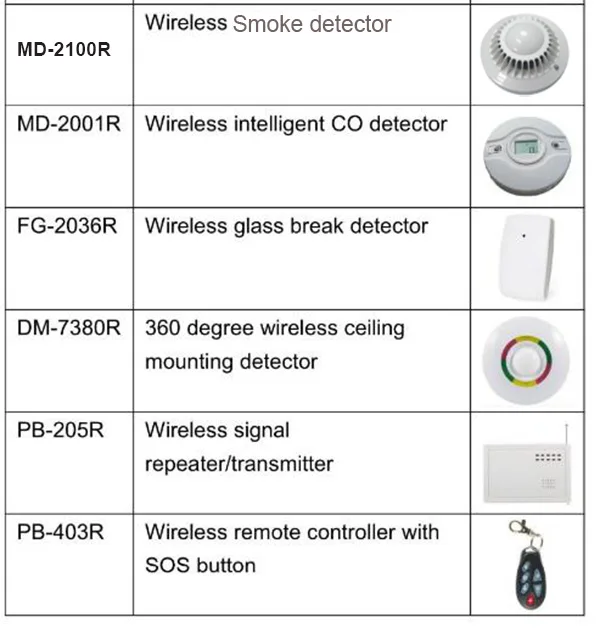

For more sensors ,contact us to customize your order
