Wireless Home Security WIFI GSM GPRS Alarm system APP Remote Control RFID card Arm Disarm

Brand Name: Marlboze
Origin: CN(Origin)
Certification: CE
Kit Configuration: Door/Window Sensor
Power: AC100~240V
Output Number: zero
Video Interface: No
Display: Yes
Alarm Type: SMS
Alarm Type: The Alarm
Alarm Type: Apps Control
Size: 185*125*14.7mm
Model Number: PG-103
Password Keyboard: Yes
Arming Type: APP
Connection Type: Wireless
Zone Number: Eleven
Language version: English,Russian,Spanish,German,Polish,Chinese switchable

$54,58$75,72

6483 in stock

Description



NOTE:   English,Russian,Spanish,German,Polish,Chinese Switchable from Sep.23,2017, only English German before.   . Only English manual!



机器人海报





PSD_01_02

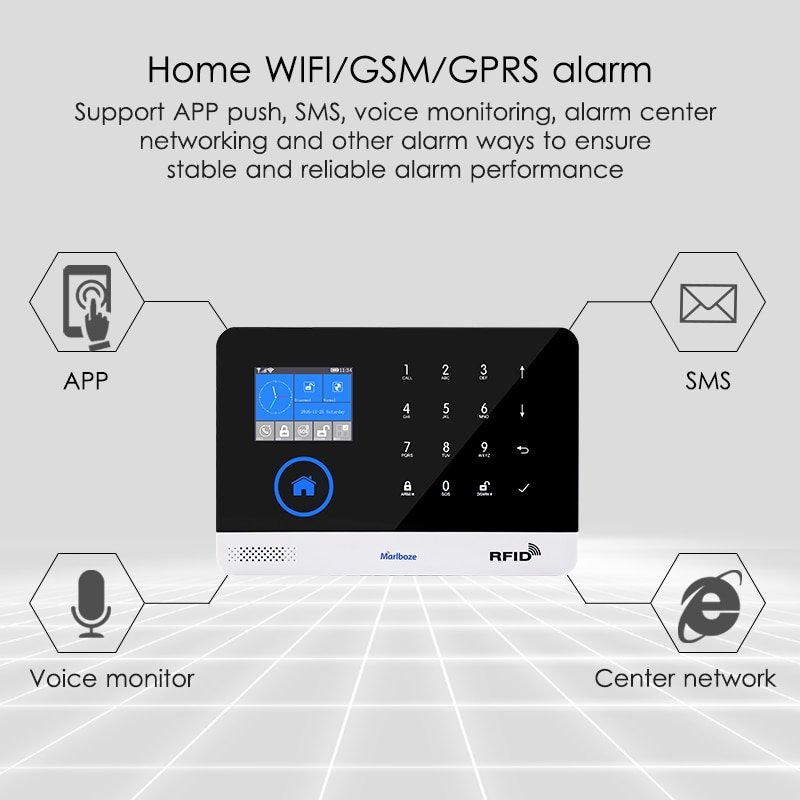

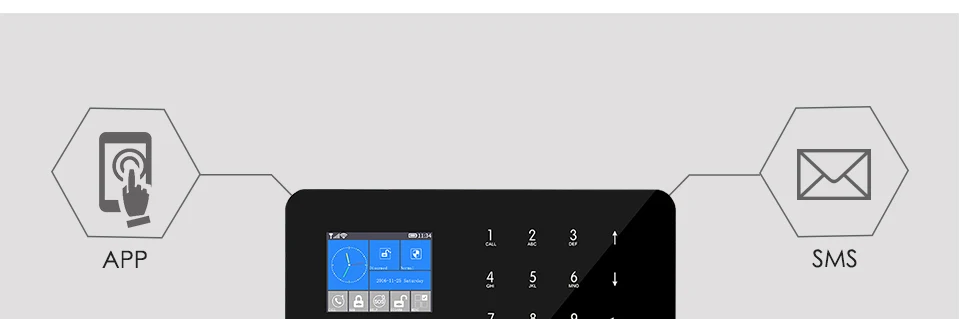

Home WIFI / GSM  / GPRS  alarm

Support APP push, SMS, Voice monitoring, alarm center networking and other alarm ways

to ensure stable and reliable alarm performance

_04_05

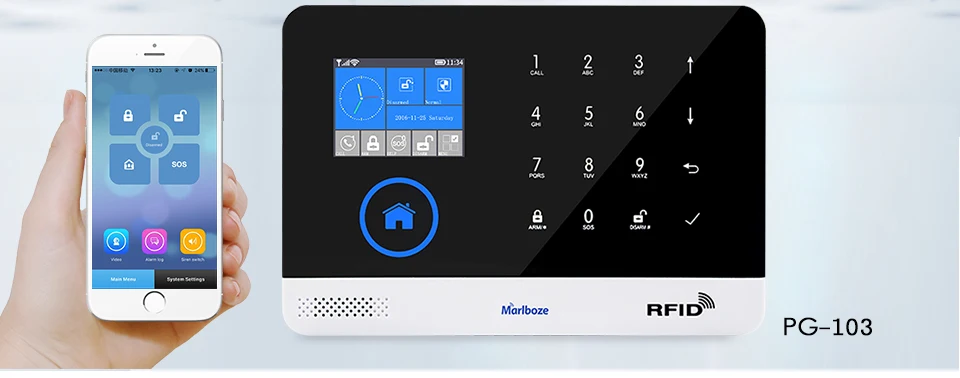

Smart host with new experience

Powerful 32-bit Cortex-M3 core CPU master, 2.4-inch TFT color display

UCOS-â…¢ operating system, simple style man-machine interface and menu guide design.

Date clock real-time display, host status at a glance

_07_08

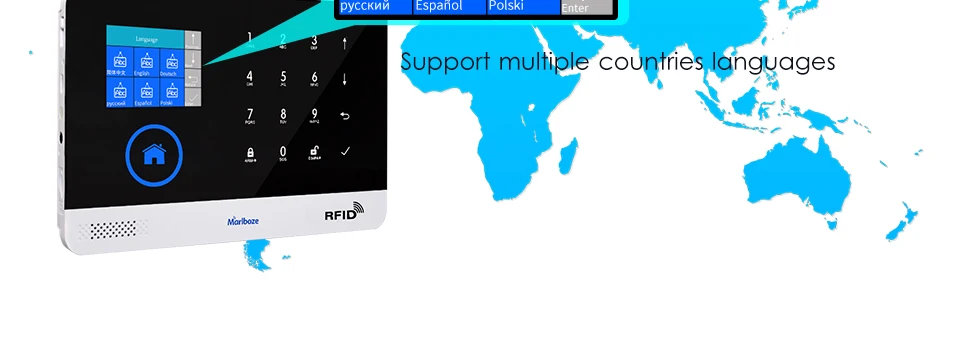

English/Russian/Spanish/German/Polish/Chinese switchable

Support multi-language menu display, voice operation prompts and alarm SMS settings.

GSM network automatic proofreading, to ensure accurate clock, support time zone settings, convenient for multi-area application

_10_11

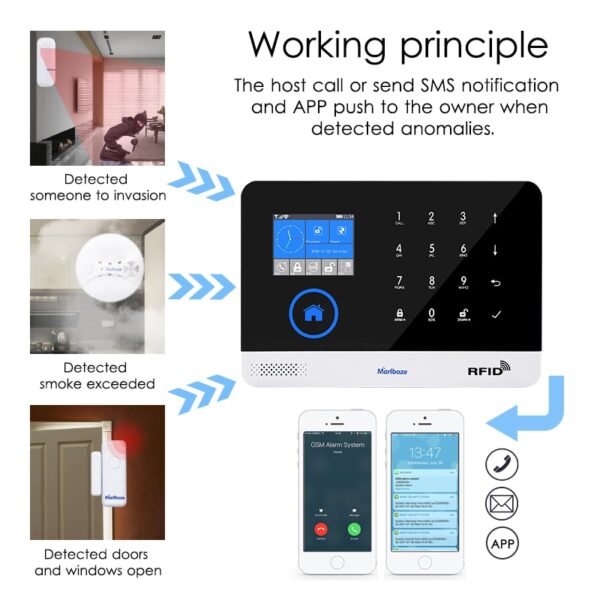

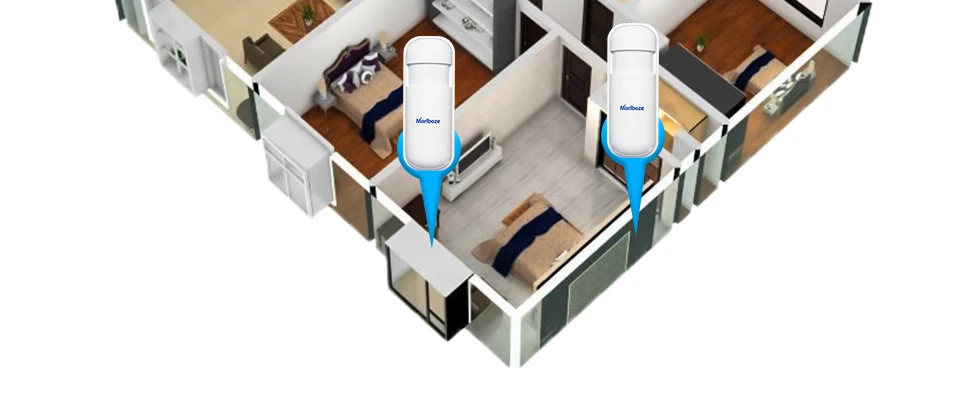

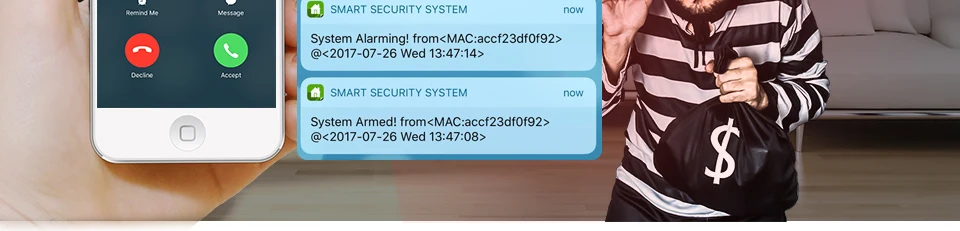

Real-time monitoring alarm

Real-time monitoring of family dynamics, high decibel live alarm

through the host timely send SMS notification and APP push when there is alarm

_13_14_15

Super expansion

Support 100 learning/storage location for remote controller, RFID cards and wireless sensors

_17_18
Multi-zone location settings

Support the gate, hall, SOS, bedroom, Window, balcony, perimeter, smoke, gas, Carbon monoxide,
water leakage etc zone name settings

_20_21
5 zone type settings

Ordinary zone, home arm, 24H emergency zone, closed zone, doorbell zone

_23_24_25

More intimate anti-theft

Support external power failure, backup power shortage, tamper alarm and other externded alarm

APP push when power outage, built-in battery low power SMS notification and APP push

_27

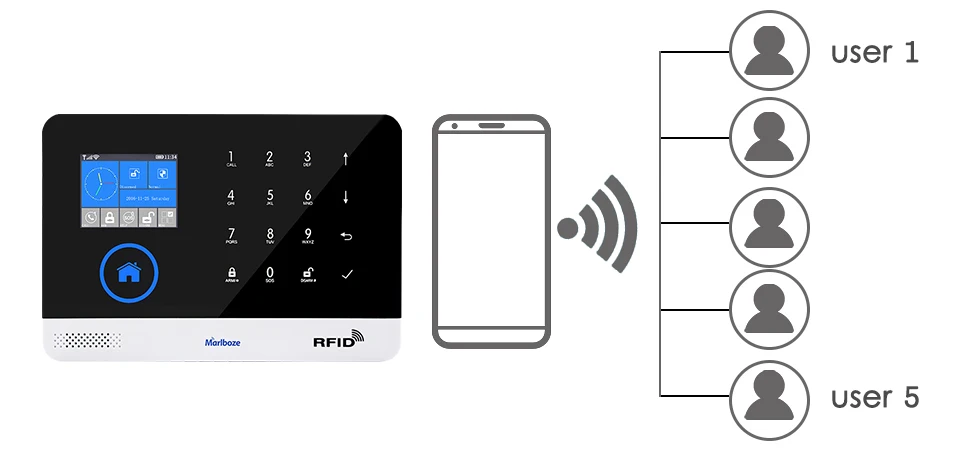

 5 groups preset alarm phone numbers

SMS on/off and dail on/off can be set respectively

_29

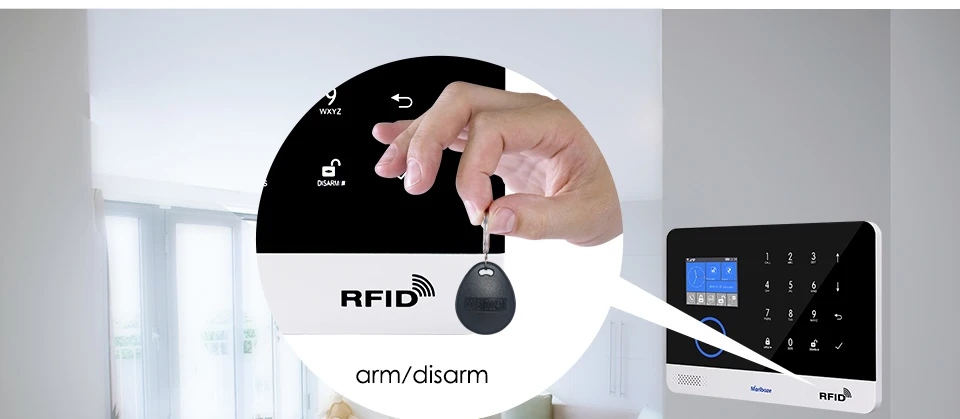

Timely arm/disarm function

1 key arm/disrm, without the trouble of manually

_31_32

Delay function

User can set arm delay and alarm delay according to own needs

_34

Product package

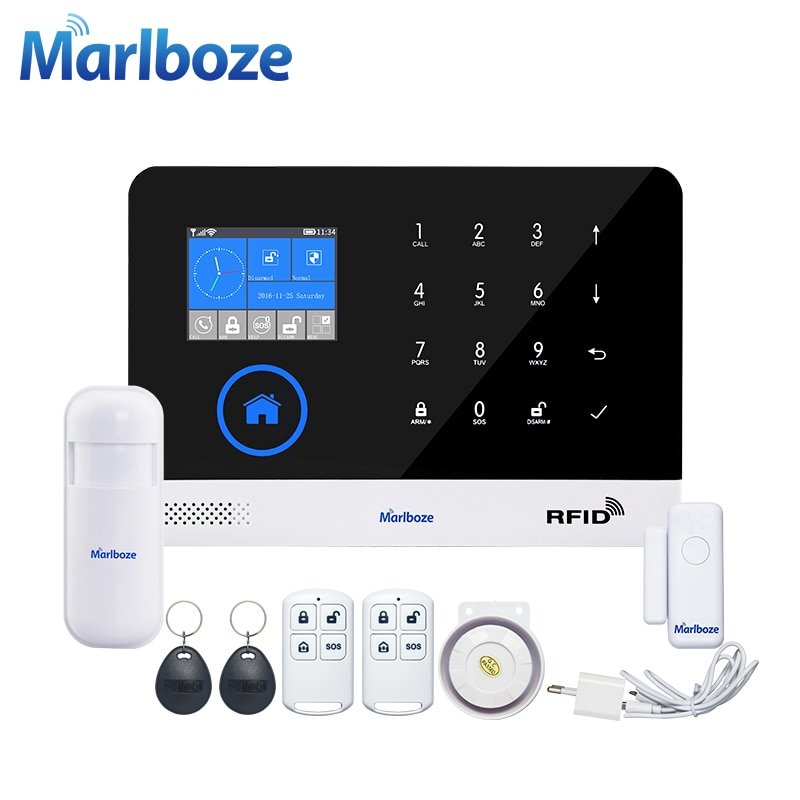

Set A Package Content
1 x  Central panel
2 x  Remote Control
1 x  Wireless Door/window sensor
1 x  Wireless Infrared Sensor
2 x  RFID card
1 x  Wired Siren
1 x  Power Adapter
1 x  User Manual

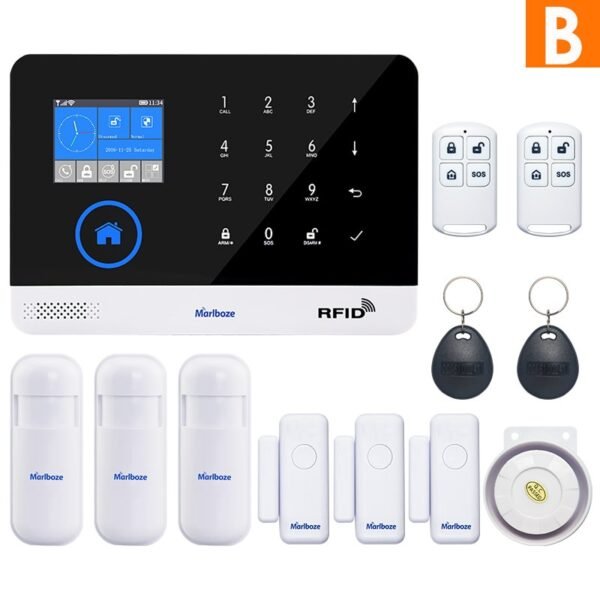

Set B Package Content

1 x  Central panel
2 x  Remote Control
3 x  Wireless Door/window sensor
3 x  Wireless Infrared Sensor
2 x  RFID card
1 x  Wired Siren
1 x  Power Adapter
1 x  User Manual


Set C Package Content
1 x  Central panel
2 x  Remote Control
2 x  Wireless Door/window sensor
2x  Wireless Infrared Sensor
2 x  RFID card
1 x  Wireless Gas sensor

1 x  Wireless Smoke sensor

1 x  Wired Siren
1 x  Power Adapter
1 x  User Manual

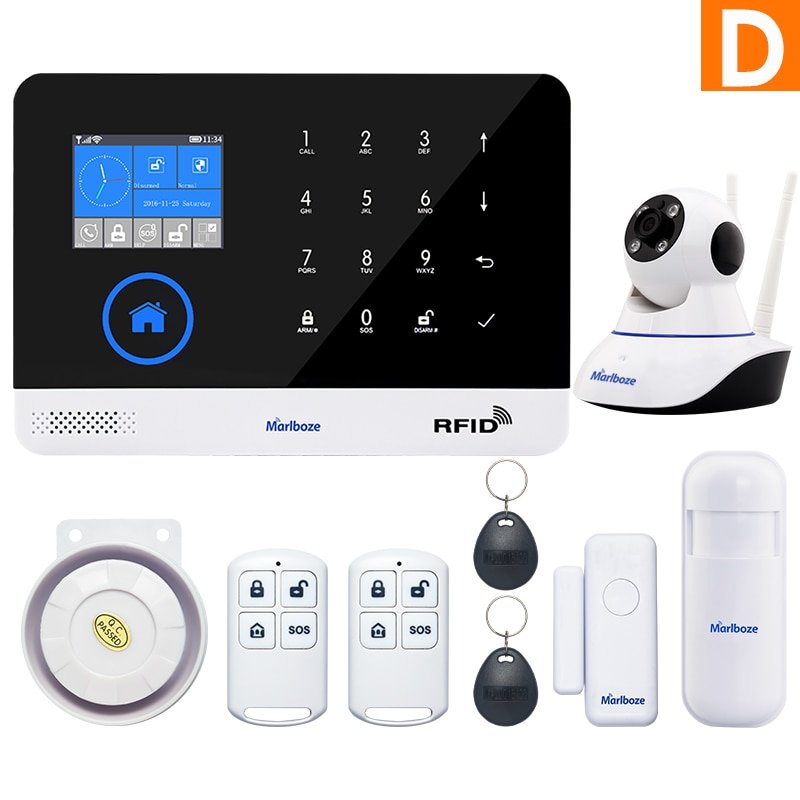

Set D Package Content
1 x  Central panel
1 x  8292 camera
2 x  Remote Control
1 x  Wireless Door/window sensor
1 x  Wireless Infrared Sensor
2 x  RFID card
1 x  Wired Siren
1 x  Power Adapter
1 x  User Manual

Set E Package Content

1 x  Central panel
2 x  Remote Control
1 x  Wireless Door/window sensor
1 x  Wireless Infrared Sensor
1 x  Wireless keypad
2 x  RFID card
1 x  Wired Siren
1 x  Power Adapter
1 x  User Manual

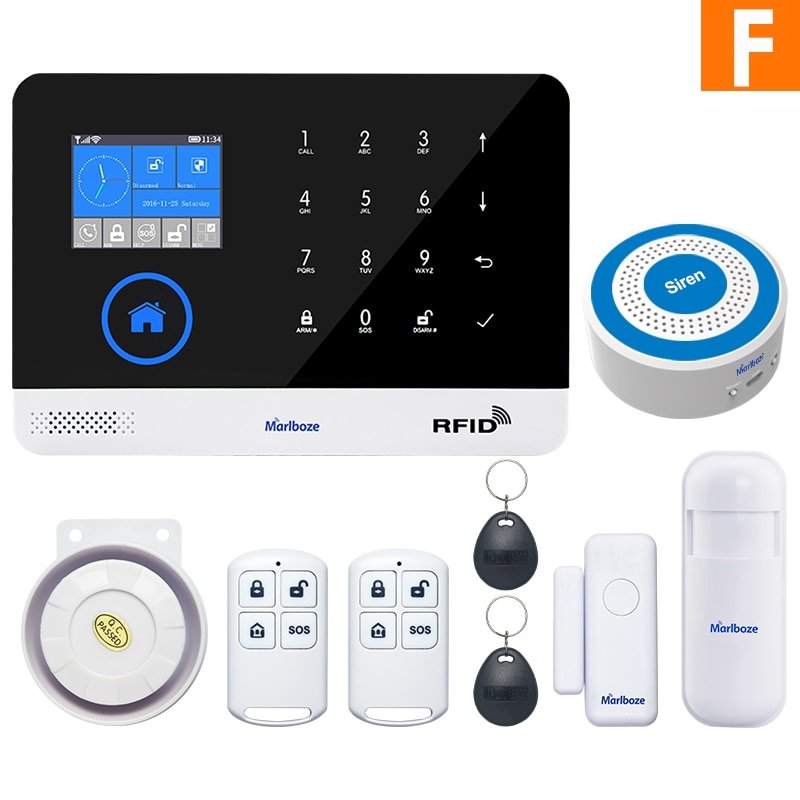

Set F Package Content

1 x  Central panel
2 x  Remote Control
1 x  Wireless Door/window sensor
1 x  Wireless Infrared Sensor
1 x  Wireless Siren
2 x  RFID card
1 x  Wired Siren
1 x  Power Adapter
1 x  User Manual


Add camera

Work with camera, can remote monitoring immediately when there is emergency, speak and scare away thieves
pGProduct Size


_44

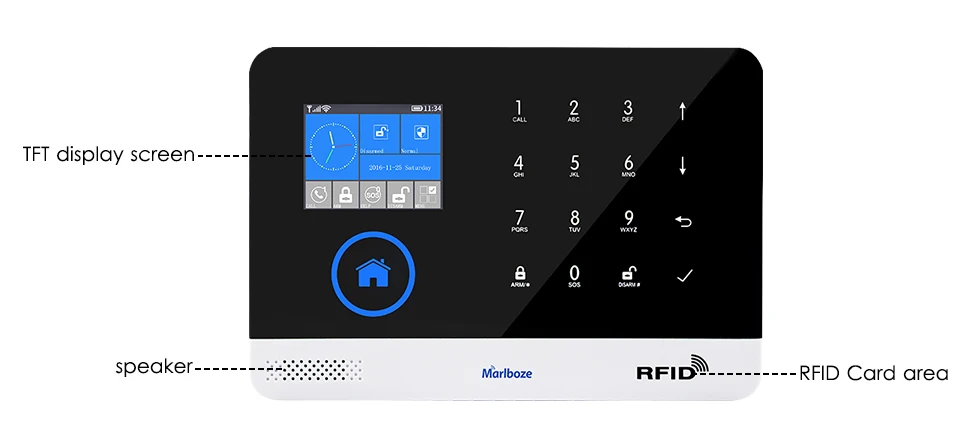

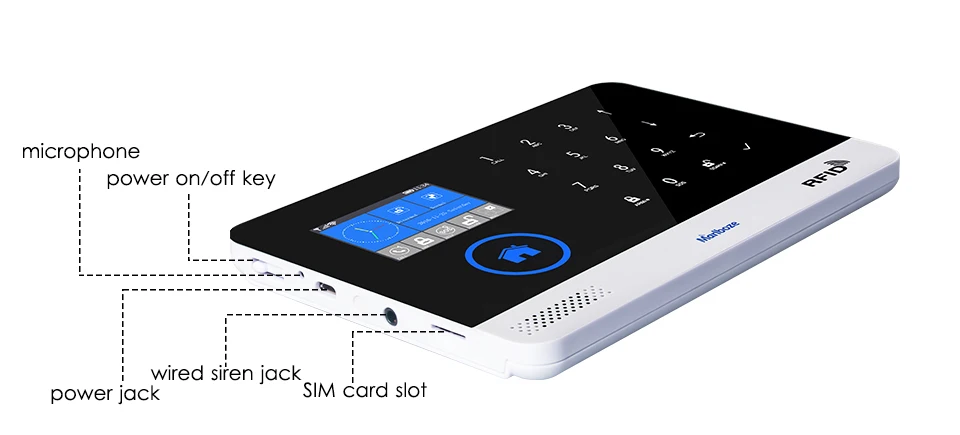

Product Details

_46_47

Specification

  • Input Voltage: DC5V/1A(micro USB jack)
  • Standby Current: <80uA
  • Working Current: <120mA
  • Siren output: <500mA
  • Wireless Frequency: 433MHZ  EV1527
  • GSM Frequency: 850/900/1800/1900MHZ
  • Back-up Battery: 3.7V/500mAh Lithium battery
  • Working temperature: 0~55  â„ƒ







Installation diagram

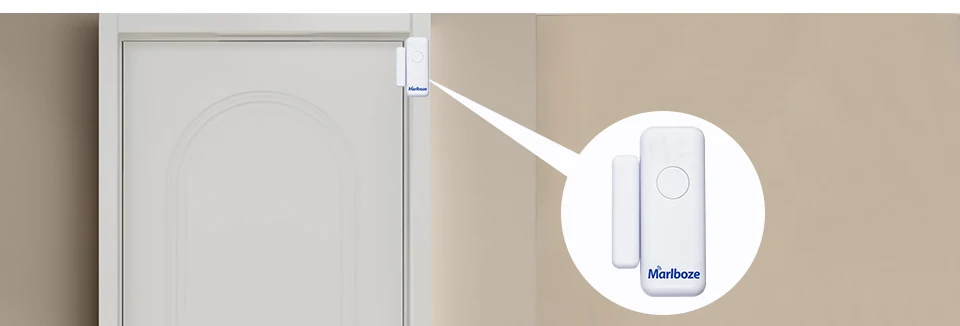

Door sensor installation:double-sided adhesive attached to the door or window,

align the scale line, the installation spacing should less than 1cm

_52_53

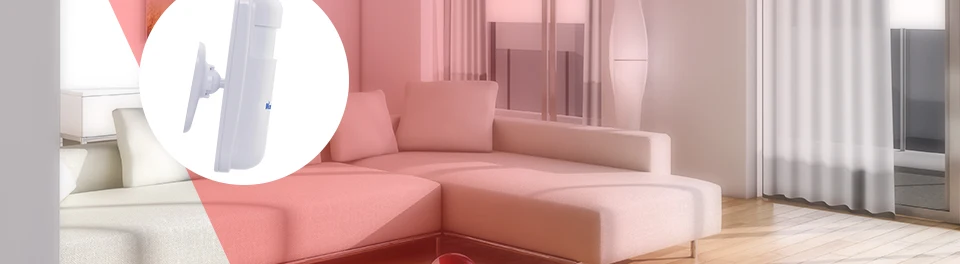

PIR sensor installation: Appropriate installation height is 1.8-2.2M from the groud

Use screws to fix on the wall, adjust mount to appropriate angle

_55_56_57
